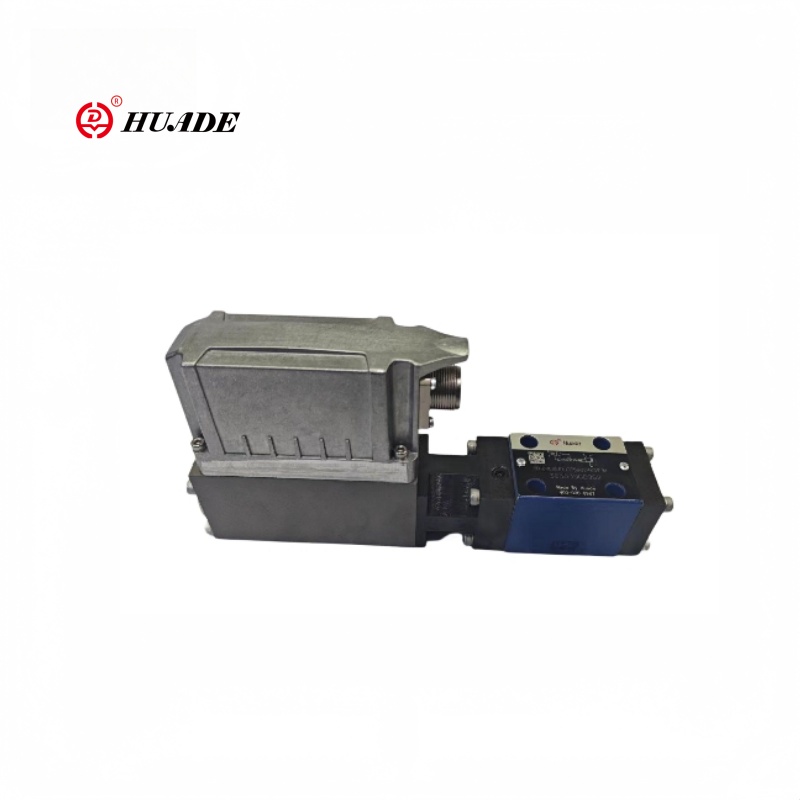

Хуад гидравликалык, Huafilter жабдыктарын орнотуу брендинин пропорционалдык басымы 6x-1x. Хуаде гидравликалык рексот менен кызматташууда 12 жылдан ашык тажрыйбага ээ. Гидравликалык пропорционалдык клапандар жана рексулдук пропорционалдык клапандар менен бирдей клапандар бирдей стандарттарды колдонушат, ал эми буюмдар б.з. 61000-6-2: 2002-08, EN 61000-6-3: 2002-08. Huade's Valve Drebe 6x-1X бир катар бир катар өнүмдөрдү алмаштыра алат.

The six-way pilot-operated proportional pressure reducing valve DREBE 6X-1X series adopts a pilot design, which can reduce the main valve core driving force and improve the response speed (frequency response can reach more than 10Hz). The six-way structure reduces the complexity of the pipeline and is suitable for compact spaces. Valve DREBE 6X-1X supports standard industrial communication protocols (such as PROFINET, EtherCAT), which is easy to integrate into intelligent hydraulic systems.


Product parameter of Proportional Pressure Reducing Valve DREBE 6X-1X

Technical data
General
Construction Pilot stage Poppet valve
Main stage Spool valve
Actuation Proportional solenoid with position control and OBE
Connection type Subplate, mounting hole configuration NG6(ISO 4401-03-02-0-05)
Mounting position Optional
Ambient temperature range ℃ -20~+50
Weight kg 3.3
Vibration resistance, test condition Max.25g, shaken in 3 dimensions(24h)


Product Feature And Application of Proportional Pressure Reducing Valve DREBE 6X-1X

Features:

▶Pilot operated valves with position feedback and on-board electronics for reducing system pressure in the consumer(pilot oil internal only)

▶3-way version (P-A/A -T),pmin = pT

▶ Adjustable through the position of the armature against the compression spring

▶ Position-controlled, minimal hysteresis <1 %,rapid response times, see Technical data

▶Pressure limitation to a safe level even with faulty electronics (solenoid current I > Imax)

▶For subplate attachment, mounting hole configuration to ISO 4401-03-02-0-05. Subplates as per catalog sheet RE45053(order separately)

▶Plug-in connector to DIN 43563-AM6, see catalog sheet RE 08008 (order separately)

▶Data for the on-board trigger electronics

Application:

Proportional pressure reducing valve DREBE 6X-1X series is a high-performance component in industrial hydraulic systems, suitable for complex working conditions that require precise pressure control and dynamic response such as construction machinery, metallurgical equipment, injection molding machines and die-casting machines.

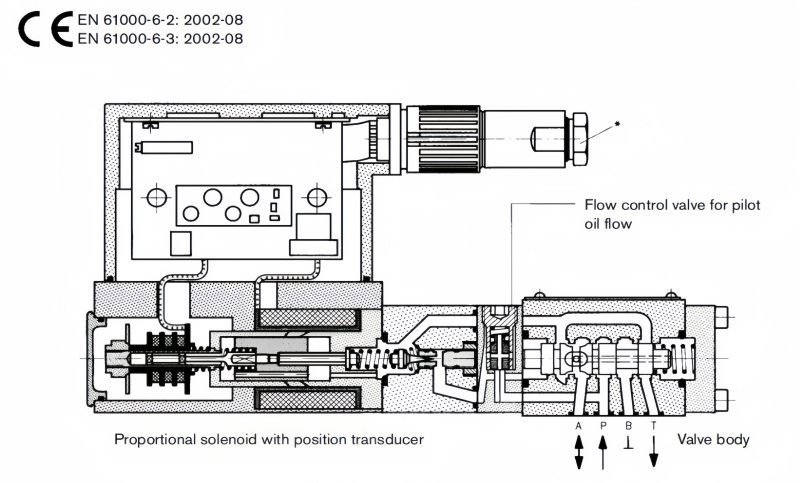

Function and Section of Proportional Pressure Reducing Valve DREBE 6X-1X

General

Type DREBE6X proportional pressure reducing valves are pilot operated with a 3-way main stage.

The pilot valve (pressure relief valve pilot stage) is supplied internally with a controlled flow of pilot oil via P.

The valves are actuated by means of a position-controlled proportional solenoid with on-board electronics.

With these valves, the pressure in A (consumer) can be infinitely adjusted and reduced in relation to the setpoint.

Basic principle

To adjust the system pressure in A, a setpoint is set in the trigger electronics. Based on this setpoint, the electronics control the position of the solenoid against the spring force. The proportional solenoid is positioned precisely on the spring characteristic curve. The pilot stage is supplied with oil from P at a flow rate of < 0.6 l/min via a flow control valve. The pilot pressure is compared with the consumer pressure (plus spring) in A and regulated.

The spring results in PAmin =p in T.

Pressure limitation for maximum safety

If a fault occurs in the electronics, so that the solenoid current (Imax) would exceed its specified level in an uncontrolled manner, the pressure cannot rise above the level determined by

the maximum spring force.
